Interplastica 2016: Arburg demonstrates automated production

At the Interplastica, to be held in Moscow from 26 to 29 January 2016, Arburg will be presenting a practical example of production-efficient, cost-effective automated production. Visitors to exhibition stand C11 in Hall 3 will see a Golden Edition series hydraulic Allrounder and an integrated Multilift Select robotic system produce a toy buggy and assemble it ready for use in a single process step.

This system is an excellent example of how injection moulding companies can increase their efficiency in a targeted way, competitively producing plastic parts at minimal unit costs. The technical features of the exhibit are precisely tailored to the market needs of Russian plastics processing companies.

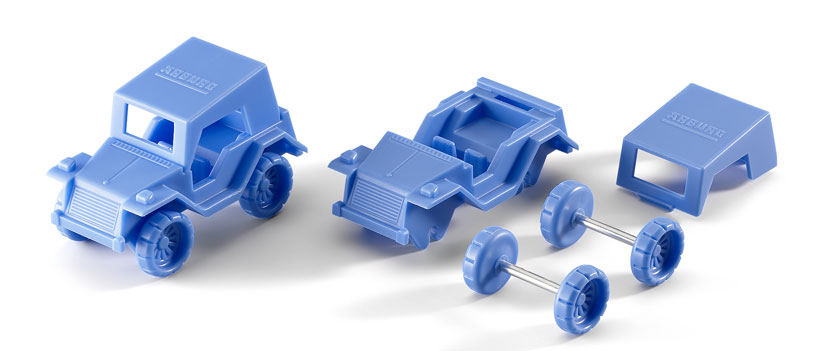

Toy buggy produced in a single injection moulding cycle

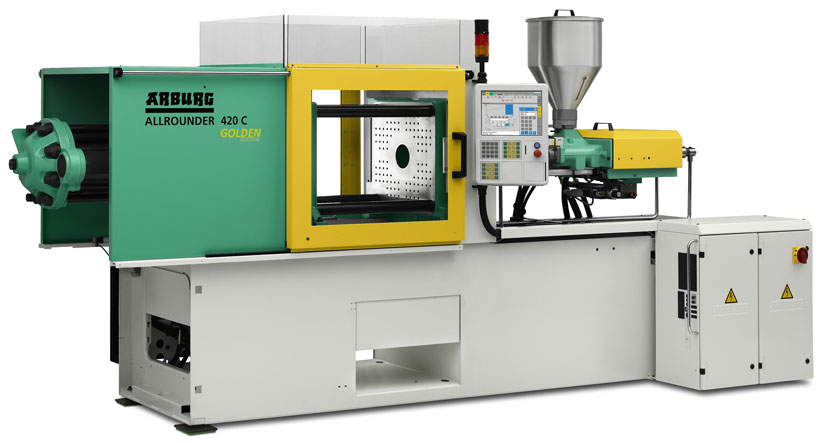

Arburg will demonstrate the high quality, automated and cost-efficient manufacturing of standard products based on the example of a toy buggy. In addition, the exhibit will provide proof of the performance capability of the proven Golden Edition series. An Allrounder 420 C Golden Edition with a clamping force of 1,000 kN and a size 290 injection unit will use a 1+1+2-cavity family mould to produce all parts in a single step. The cycle time is around 30 seconds.
Following the injection moulding process, a Multilift Select robotic system removes the sprue and the four individual parts - the roof, chassis and two axles with overmoulded wheels - and assembles these on an assembly table to produce the finished buggy.



Energy-optimised Allrounder
The Allrounder is equipped with the Arburg productivity package. This comprises the Arburg energy saving system (AES) with variable speed pump drive and water-cooled drive motor. This makes operation with two control pumps even more economical, allowing two simultaneous movements to be realised. The benefits of the productivity package are the reduction of the energy requirement by up to 20 percent, the shortening of the dry cycle times by around five percent and the minimising of emissions.

Cost-efficient entry-level automated production
The Multilift Select is the entry-level model among the linear robotic systems from Arburg. It has servo-electric drives and is fully integrated in the Selogica machine control system. For the operator this means: only one data set, a familiar approach during programming and perfect synchronisation of robotic system and machine. In addition, the teach-in function means that the Multilift Select is extremely easy to program.
This configuration allows companies to take their first steps in automated injection moulding production thanks to the proven technology and the ease with which the system can be programmed and operated, as well as the optimum price/performance ratio.

German machine manufacturer Arburg is one of the world's leading manufacturers of injection moulding machines with clamping forces between 125 and 5,000 kN. This is complemented by robotic systems, customer- and sector-specific turnkey solutions and further peripherals. An innovative additive manufacturing system was added to the plastic processing range in 2013.

The company places the topic of production efficiency at the centre of all its activities, taking into account the entire value-added chain. The objective is to enable the Arburg customers to manufacture their plastic products, whether one-off parts or high-volume production, in optimal quality and at minimum unit costs – e.g. for the automotive and packaging industries, communication and entertainment electronics, medical technology or the white goods sector.

An international sales and service network guarantees first-class, local customer support. Arburg is represented by its own organisations at 32 locations in 24 countries and by trading partners in more than 50 countries. The machines are produced exclusively at the parent factory in Lossburg, Germany. Of a total of roughly 2,500 employees, around 2,050 work in Germany. About 450 further employees work in Arburg’s organisations around the world. In 2012, Arburg became one of the first companies to gain triple certification: to ISO 9001 (Quality), ISO 14001 (Environment) and ISO 50001 (Energy).

Source: Arburg
