AMUT showcases a thermoforming machine at Chinaplas

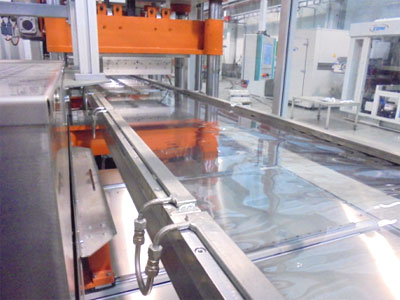

At Chinaplas AMUT GROUP presents in operation the VPK-C84 automatic thermoforming machine producing rigid packaging, such as trays, punnets, containers.

The AMUT GROUP range of thermoforming machines stands clearly out due to a sturdy structure, an innovative design criteria and high running performances at low energy consumption. Both off-line and in-line solutions are provided. The machines boast a proven strength and durability also under heavy conditions of cutting tougher materials, such as PET and PP at high cycles rate. The VPK-84 is composed by three stations: forming, steel rule die cutting and stacking.

Technical data: Forming and punching area: 840 x 650 mm Max film width: 880 mm Total installed power: 105 kW Forming press: 25 ton Cutting press: 60 ton Dry cycles: 45 Forming depth, positive/negative: 130 mm
Main features: - Handling system by servomotors. - 4-columns forming and cutting press. - Upper and/or lower plug with servomotor. - Forming with compressed air and/or vacuum. - Quick clamp system for forming and punching mould, cutting and stacking tools. - Steel-rule dies heating plate. - Upper oven partial heating (last pitch). - Wall stacker (other versions available).

AMUT GROUP is also reliable manufacturer of tailor-made extrusion lines to produce foils, sheets, films, membranes, pipes and profiles. The Recycling Division is highly specialised in washing plants to recover PET bottles and HDPE containers and offers a wide range of machinery for the waste handling and sorting. The newly settled AMUT DOLCI & BIELLONI offers printing machines, blown and cast lines for different multilayer films (stretch, barrier, technical, medical, diapers, PP and masking), coating and laminating lines. AMUT GROUP shares the booth together with COMI, Italian partner leader in manufacturing customized thermoforming machinery, cutting systems, moulds and presses for several types of applications.

Source: AMUT
